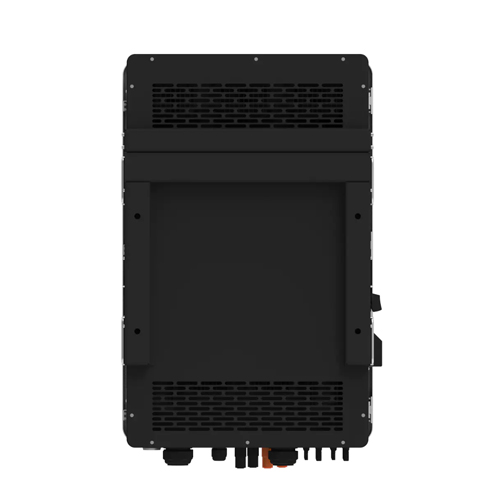

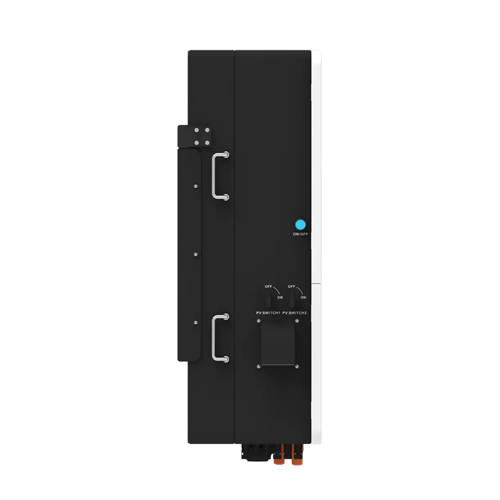

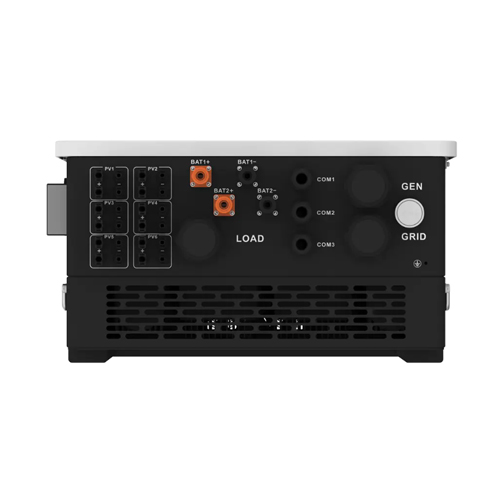

DEYE 80KW HV HYBRID INVERTER
DEYE 80KW HV HYBRID INVERTER - Image 2
DEYE 80KW HV HYBRID INVERTER - Image 3
DEYE 80KW HV HYBRID INVERTER - Image 4

DEYE 80KW HV HYBRID INVERTER

SKU: A000416
Be the first to leave a review.

Out of stock

R138 000.00

Online Purchase Price, NOT Valid In-Store

Out of stock

Product Specifications

  • Model: SUN-80K-SG02HP3-EU-EM6
  • Type: Three-phase hybrid inverter
  • Battery Type: Lithium-ion
  • Battery Voltage Range: 160–1000V
  • Max. Charging Current: 160A (80+80)
  • Max. Discharging Current: 160A (80+80)
  • Number of Battery Inputs: 2
  • Max. PV Input Power: 160,000W
  • Max. DC Input Power: 128,000W
  • Max. DC Input Voltage: 1000V
  • MPPT Voltage Range: 150–850V
  • Rated DC Input Voltage: 650V
  • Start-up Voltage: 180V
  • No. of MPPTs / Strings per MPPT: 6 / 2+2+2+2+2+2
  • Rated AC Output Power: 80,000W
  • Max. AC Output Apparent Power: 88,000VA
  • Rated AC Output Current: 133.4A
  • Max. AC Output Current: 127.6A
  • Max. Continuous AC Passthrough (grid → load): 200A
  • Max. Efficiency: 98.7%
  • Euro Efficiency: 98.1%
  • MPPT Efficiency: >99%
  • Protection Functions: DC reverse polarity, AC output overcurrent/overvoltage, AC output short circuit, thermal, DC component monitoring, insulation impedance detection, residual current detection, anti-islanding, DC switch, surge protection Type II (DC/AC), AFCI (optional)
  • Communication / Monitoring: RS485, RS232, CAN; GPRS / Wi-Fi / Bluetooth / 4G / LAN (optional)
  • Enclosure Protection Rating: IP65
  • Cooling: Intelligent air cooling
  • Operating Temperature: -40°C to +60°C (derating >45°C)
  • Humidity: 0–100%
  • Altitude; ≤3000m
  • Noise: ≤65dB
  • Dimensions (W × H × D): 606MM × 927MM × 314MM (excluding connectors & brackets)
  • Weight: ±105kg
  • Warranty: 5 Years

Product Features

The Deye SUN-80K-SG02HP3-EU-EM6 is a powerful three-phase hybrid inverter designed for large-scale commercial and industrial energy systems. With 80kW rated output and up to 160kW PV input capacity, it maximises solar energy capture while ensuring efficient battery integration through its high-voltage design. Six MPPT trackers enable optimal performance across multiple solar arrays.

Built for scalability and reliability, this inverter supports parallel operation of up to 10 units, making it ideal for high-demand installations. With intelligent air cooling, IP65 protection, and advanced safety features, it guarantees long-term stable operation. The SUN-80K is the ultimate choice for businesses looking for robust solar solutions, high efficiency, and dependable energy independence.

VIEW DATA SHEET

⚠️ Disclaimer

Installation must be done by a certified electrician in line with South African regulations. Incorrect installation may void the warranty.  Always follow manufacturer guidelines.
