Out of stock
DEYE 16KW 48V HYBRID INVERTER

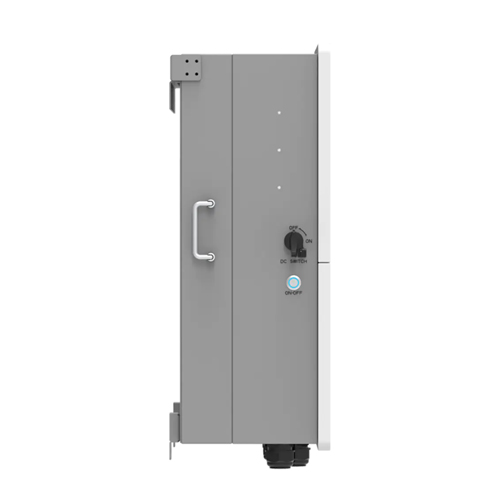

DEYE 16KW 48V HYBRID INVERTER - Image 2

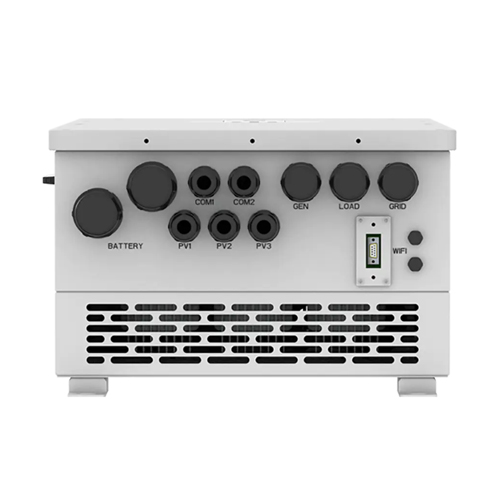

DEYE 16KW 48V HYBRID INVERTER - Image 3

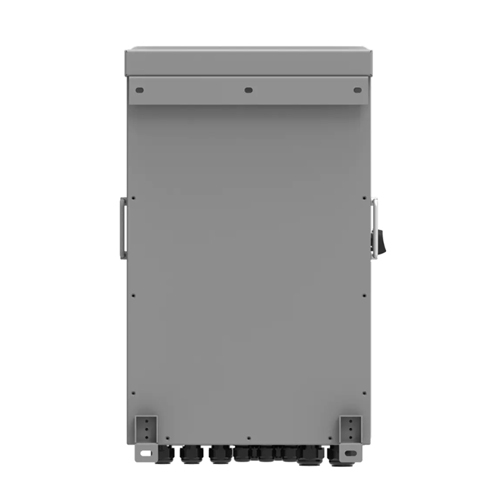

DEYE 16KW 48V HYBRID INVERTER - Image 4

DEYE 16KW 48V HYBRID INVERTER

SKU: A000408
Be the first to leave a review.

Out of stock

R47 005.00

Online Purchase Price, NOT Valid In-Store

Out of stock

Product Specifications

  • Model: SUN-16K-SG01LP1-EU
  • Type: Single-phase hybrid inverter
  • Battery Type: Lead-acid or Lithium-ion
  • Battery Voltage Range: 40–60V
  • Max. Charging Current: 290A
  • Max. Discharging Current: 290A
  • Number of Battery Inputs: 2
  • Max. PV Input Power: 256000W
  • Max. PV Input Voltage: 500V
  • MPPT Voltage Range: 150–425V
  • Rated PV Input Voltage: 370V
  • Start-up Voltage: 125V
  • No. of MPPTs / Strings per MPPT: 3 / 2+2+2
  • Rated AC Output Power: 16,000W
  • Max. AC Output Apparent Power: 17,600VA
  • Rated AC Output Current: 69.6A
  • Max. AC Output Current: 76.5A
  • Max. Continuous AC Passthrough (grid → load): 100A
  • Max. Efficiency: 97.6%
  • Euro Efficiency: 96.5%
  • MPPT Efficiency: >99%
  • Protection Functions: DC reverse polarity, AC output overcurrent/overvoltage, AC short circuit, thermal, DC component monitoring, insulation impedance detection, residual current detection, anti-islanding, DC switch, surge protection Type II (DC/AC), AFCI (optional)
  • Communication / Monitoring: RS485, RS232, CAN; GPRS / Wi-Fi / Bluetooth / 4G / LAN (optional)
  • Enclosure Protection Rating: IP65
  • Cooling: Intelligent air cooling
  • Noise: <50dB
  • Dimensions (W × H × D): 464MM × 763MM × 282MM (excluding connectors & brackets)
  • Weight: ±52kg
  • Warranty: 5 years

Product Features

The Deye SUN-16K-SG01LP1-EU is a top-tier single-phase hybrid inverter designed for large residential and commercial solar systems. With 16kW output power and an impressive 25.6kW PV input capacity, it delivers high efficiency and stable energy management. Triple MPPT trackers and a 290A charge/discharge current enable optimal performance, even with heavy loads and large solar arrays.

Engineered for scalability, this inverter supports parallel operation of up to 16 units and integrates seamlessly with both lithium and lead-acid batteries. Its IP65-rated enclosure, intelligent air cooling, and comprehensive safety protections ensure long-lasting reliability. Compact yet powerful, the SUN-16K-SG01LP1-EU is a future-proof solution for businesses and households seeking maximum solar efficiency and energy independence.

VIEW DATA SHEET

⚠️ Disclaimer

Installation must be done by a certified electrician in line with South African regulations. Incorrect installation may void the warranty.  Always follow manufacturer guidelines.
